| Model | DXTECH-1530EL | DXTECH-1530ELT | DXTECH-1530SLT |
| Working area (mm) | 1530*3050 | 1530*3050 | 1530*3050 |
| Max. acceleration | 1.2G | 1.2G | 1.2G |
| Worktable load capacity | 800kg | 800kg | 1600kg |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
| Laser power | 1kW – 6kW | 1kW – 6kW | 1kW – 6kW |
| Machine bed | Pipe welded bed | Pipe welded bed | Pipe welded bed |
| Laser | Multiple options | Multiple options | Multiple options |
| Focusing method | Auto/manual | Auto/manual | Auto/manual |
| Max. linkage speed | 120m/min | 120m/min | 120m/min |
Exchange Table Laser Cutting Machine
Exchange Table Laser Cutting Machine Designed for Continuous Metal Processing
▌15s exchange table realizes fast loading and unloading.
▌Dual exchange table design for continuous production
▌Cutting accuracy of ±0.03mm
DXTECH Exchange Table Laser Cutting Machine
DXTECH exchange table laser cutting machine is designed for batch metal processing. It is equipped with a 15s exchange table. The dual worktables allow cutting and loading/unloading to proceed simultaneously. Compared with manual loading and unloading, this design saves time and labor costs and greatly improves production efficiency. The dual exchange table design saves more than 50% of space and brings double production benefits. The machine provides high cutting speed and stable performance.
It is widely used in sheet metal fabrication, furniture manufacturing, construction, and other metal processing industries.
OUR PRODUCT
Product By Features
DXTECH introduces exchange table laser cutting machine in multiple sizes to meet customers’ processing needs and provide customized solutions.
EL Series
3000W Exchange Table Laser Cutting Machine
- Power: 1000W-6000W
- Working Dimensions: 1530mm*3050mm~2020mm*6050mm
- Worktable Load Capacity: 800KG~2100KG
- Maximum Acceleration: 1.2G~1.4G
- Idle Speed: 120m/min
- Entry-level equipment, suitable for small to medium-sized metal processing.
ELT Series
Metal Sheet and Tube Exchange Table Laser Cutter
- Power: 1000W-6000W
- Working Dimensions: 1530mm*3050mm~2020mm*6050mm
- Worktable Load Capacity: 800KG~2100KG
- Maximum Acceleration: 1.2G~1.4G
- Idle Speed: 120m/min
- Can process sheet metal and tubes simultaneously
SLT Series
Fully Enclosed Exchange Table Laser Cutter
- Power: 1000W-6000W
- Working Dimensions: 1530mm*3050mm~2020mm*6050mm
- Worktable Load Capacity: 1600KG~2100KG
- Maximum Acceleration: 1.2G~1.4G
- Idle Speed: 120m/min
- Fully enclosed laser protective cover, safe and environmentally friendly.
Features of Exchange Table Laser Cutting Machine
The most distinctive features of exchange table laser cutting machine are batch processing, high efficiency, and stable operation.
Standard exchange platform
Equipped with a dual processing platform, the loading time only needs 15s, which greatly shortens the working time and improves the working efficiency.
Heavy-duty pipe welding bed
The bed has high rigidity and a stable structure, and can maintain normal use for 20 years without deformation.
Advanced imported machine parts
With the advanced imported machine parts adopted, this machine has excellent processing performance and long working life.
Dual-zone dust removal
Dust removal adopts dual-zone dust removal, effectively filtering harmful gases, smoke, and dust, improving environmental performance in production.
High-precision & high-stability laser cutting
High-rigidity machine bed and precision transmission components ensure stable cutting accuracy and reliable long-term performance.
Quality assurance
DXTECH holds more than 120 national patents and has obtained ISO, FDA, UL, CE, and other international quality system certifications.
Exchange Table Laser Cutting Machine Highlights
Intelligent Focusing Laser Head
-
Fast auto-focusing：Automatic continuous focusing, automatic cutting of plates of different thicknesses and materials without manual intervention, focusing speed up to 10m/min, repeatability of about 50 micrometers.
-
Anti-collision function：The laser head can be equipped with Raytools, OSPRI, and WSX brands. It can detect obstacles and reduce the probability of impacting the material, thus protecting the delicate and fragile laser components.
Heavy-duty Pipe Welding Bed
The DXTECH Exchange Table Laser Cutting Machine bed frame is constructed from ultra-heavy-duty steel plates using a tenon-and-mortise welding method. It undergoes a stress-relief annealing process at 600℃ for 10 hours in an ultra-large fuel-heated annealing furnace. After high-temperature annealing completely removes internal stress, it is then machined. The bed frame boasts high rigidity and structural stability, ensuring it remains undeformed for up to 20 years of normal use.
Sectional Dust Removal
The DXTECH Exchange Table Laser Cutting Machine adopts dual-zone dust removal, with air blowing from one side and suction from the other, moving with the crossbeam. This effectively filters harmful gases, smoke, and dust, making the production process greener and more environmentally friendly. It can also exhaust the heat generated during cutting, along with the smoke and dust. Its simple structure makes components such as cylinders less prone to damage.
CyPCUT intelligent control system
The DXTECH Exchange Table Laser Cutting Machine system enables intelligent layout of graphic cutting, supports importing multiple graphics, automatically optimizes the cutting sequence, intelligently searches for edges, and automatically positions them.
Utilizing optimal logic programming and software interaction, it effectively improves sheet material utilization and reduces waste. Operation is simple and fast, and cutting commands are efficient and precise, effectively enhancing the user experience.
Exchange Table Laser Cutting Machine Applications
Sheet Metal Processing Industry
Exchange table laser cutting machines are the most popular laser equipment among sheet metal processors. They can cut a wide range of materials, including stainless steel, carbon steel, galvanized sheet, and aluminum sheet, for batch processing, meeting the customized processing needs of different customers.
Advertising Industry
Exchange table laser cutting machines are primarily used for rapid processing of metal lettering, lightbox frames, display racks, and outdoor advertising. The advertising industry has a high demand for customization, and the exchange table design minimizes loading and unloading time, improving throughput and productivity.
Construction Industry
Industrial exchange table fiber laser cutting machines are mainly used in the construction industry for cutting medium-thick plates, such as building steel structures and machinery housings. They possess high rigidity and high speed, suitable for mass production of engineering parts.
Automotive Manufacturing and Repair
Exchange table laser cutting machines are primarily used for high-precision cutting of metal materials such as car bodies, exhaust pipes, and interior and exterior trim components. The cut surfaces are smooth and burr-free, meeting the cutting requirements of complex parts in automotive manufacturing.
Furniture and Decoration Industry
Industrial Exchange table laser cutting machines can cut complex patterns in metal, applicable to metal furniture, home decoration, and other fields. The cut edges are clean and sharp, and it can also be used for customized production.
Electronics and Precision Instruments Industry
Exchange table laser cutting machines enable high-precision machining of metal parts such as electronic device housings, mounting brackets, and precision components. The cut edges are smooth with minimal deformation, meeting the high requirements of the electronics industry.

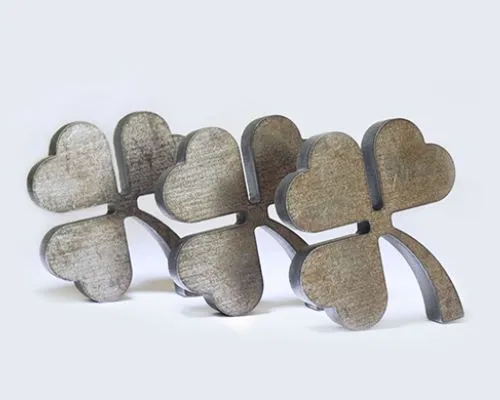

Parameters and Samples
Exchange table laser cutting machines can meet various metal processing requirements and are used to cut stainless steel, carbon steel, alloy steel, galvanized steel, aluminum, brass, copper, titanium, and other metal sheets and tubes.
They are widely used in mechanical parts, electrical equipment, sheet metal processing, electrical cabinets, kitchenware, elevator panels, hardware tools, metal casings, advertising signs, metal crafts, decorations, medical devices, automotive parts, and other metal cutting fields.
Company Advantage
Independent R&D, Factory Direct Sales
Established in 2009, DXTECH is a professional manufacturer of laser equipment. Its core product range includes fiber laser cutting machines, laser welding machines, laser cleaning machines, press brake machines, and more, with three production bases covering a total area of
Complete metal processing solutions
DXTECH standard production line solutions include: Laser cutting machine +Press brake machine + Laser welding machine, which can efficiently complete the full processing workflow from cutting to welding. No matter what metal-processing equipment you need, DXTECH can tailor it to your needs.
Comprehensive support
We provide comprehensive and overall service before and after sales: online consultation, sample testing, factory visit, online technical support, on-site training and installation, etc. We are committed to keeping your production running with minimal downtime through fast technical support and comprehensive after-sales services.

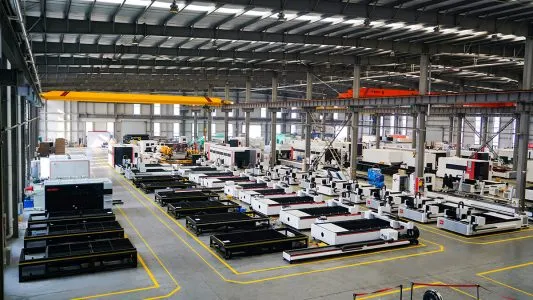

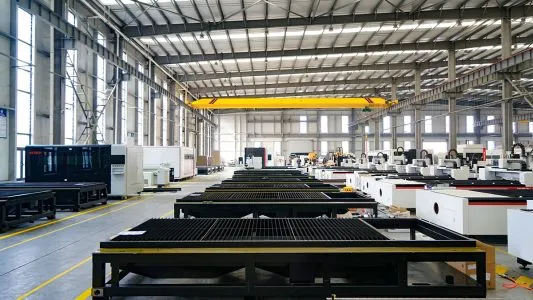

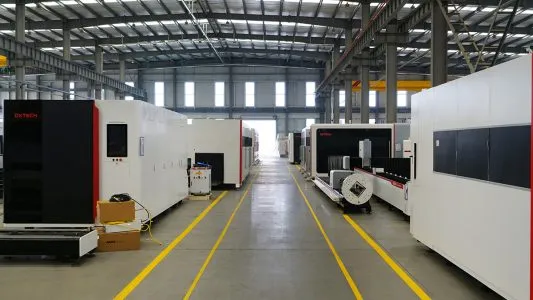

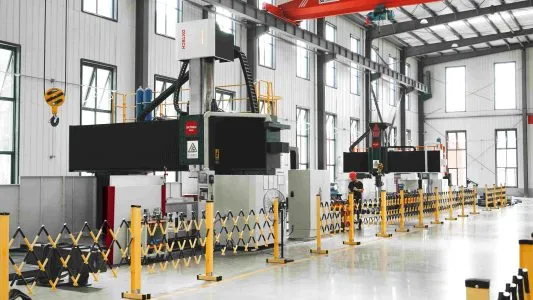

Global Customers Visit DXTECH
Since 2009, DXTECH Laser has been deeply involved in the laser cutting industry for 17 years. Our fiber laser cutting machines have been exported to over 180 countries and regions, and our exchange table fiber laser cutting machine for sale solutions have earned the trust of more than 9,000 customers worldwide.
We sincerely welcome customers from all over the world to visit China, tour our factory and offices, gain a deeper understanding of the superior performance and quality of our equipment, and establish closer cooperative relationships. If you would like to visit DXTECH, please contact us!
Nigerian Customer Visited DXTECH and Ordered the 1530FL 3000W CNC Metal Sheet Laser Cutting Machine
Table of Contents1 1. 11-point automatic lubrication extends equipment life2 2. Dramatic reduction in piercing [...]
26
Dec
Dec
Saudi Customer Visited DXTECH and Ordered the 2060FT/2560FP 12KW/20KW Industrial Laser Cutting Machine
Table of Contents1 1. 11-point automatic lubrication extends equipment life2 2. Dramatic reduction in piercing [...]
17
Dec
Dec
Réunion Customer Visited DXTECH and Purchased the 1530SPT 12KW Tube and Plate Laser Cutting Machine
We are delighted to share with you the highlights of our recent visit from a [...]
10
Dec
Dec
Congo Customer Visited DXTECH and Purchased the 1530FL 2000W Fiber Laser Metal Cutting Machine
We were honored to host a customer from Congo! Guided by our sales team, the [...]
28
Nov
Nov
Iranian Customer Visited DXTECH and Purchased the 1560FP6T 3KW Carbon Steel Fiber Laser Cutting Machine
Recently, a valued customer from Iran shared his experience after two years of using the [...]
25
Nov
Nov
Canadian Customer Visited DXTECH and Purchased the 1530FL 3KW Sheet Metal Laser Cutting Machine and Press Brake Machine
In this article, we’re pleased to share the wonderful experience of a Canadian customer visiting [...]
17
Sep
Sep
Réunion Customer Visited DXTECH and Ordered the FLT 6KW Sheet and Tube Laser Cutting Machine and 4 in 1 Welding Machine
We were honored to welcome a valued customer from Reunion Island to DXTECH! Led by [...]
16
Sep
Sep
Romania Customer Visited DXTECH and Ordered the X3000 12KW H Steel Beam 5 Axis Fiber Laser Cutting Machine
We warmly welcome our Romanian distributors to their recent visit to the DXTECH factory! Led [...]
12
Sep
Sep
Customers Feedback
Bosnian Customer Praises DXTECH 1530FL6T Stainless Steel Sheet and Tube Fiber Laser Cutting Machine
Recently, a customer from Bosnia and Herzegovina who specializes in boiler manufacturing chose the DXTECH [...]
26
Dec
Dec
Azerbaijani Customer Praises DXTECH 1530FLT Aluminum Fiber Laser Cutter&Laser Welding&Press Brake Bending Machine
A customer from Azerbaijan, specializing in cabinet manufacturing, recently chose the DXTECH 1530FLT aluminum fiber laser [...]
23
Dec
Dec
B&H Customer Praises DXTECH 1530FLT 3KW Carbon Steel Fiber Laser Cutting Machine
Recently, a customer in Bosnia and Herzegovina chose the DXTECH 1530FLT 3kw carbon steel fiber [...]
18
Dec
Dec
Australian Customer Reviews DXTECH 1530SL Metal Fiber CNC Laser Cutting Machine
Recently, a customer from Australia in the duct fabrication and ventilation industry chose the 1530SL [...]
16
Dec
Dec
French Customer Praises DXTECH High Precision 1530CF Acrylic CNC Fiber Laser Cutting Machine
Recently, a French client specializing in kitchenware and furniture manufacturing chose DXTECH’s 1530CF acrylic and [...]
11
Dec
Dec
Kyrgyzstan Customer Reviews DXTECH 1530 FPT Metal CNC Fiber Laser Cutting Machine & Welding Machine
Recently, a client from Kyrgyzstan engaged in metal materials processing chose DXTECH’s 1530FP6T fiber sheet [...]
04
Dec
Dec
Portuguese Customer Reviews DXTECH 1530 FL Carbon Steel Metal CNC Fiber Laser Cutting Machine
Recently, a client from Portugal specializing in ventilation duct manufacturing, after a thorough evaluation, chose [...]
27
Nov
Nov
Portugal Customer Praises DXTECH FL6T Fiber Laser Cutting Machine &4 in 1 Laser Welding Machine
Recently, a client from Portugal’s metal processing industry, after extensive evaluation, chose DXTECH’s 1530FL6T fiber [...]
25
Nov
Nov
FAQ
With 17 years of experience, we specialize in delivering the highest-quality, cost-optimized laser solutions with exceptional performance.
How does the exchange table system improve productivity?
The exchange table system allows simultaneous cutting and material loading/unloading. Table exchange typically takes 10–15 seconds, reducing idle time and increasing overall productivity by up to 30–50% compared with single-table laser cutting machines.
What is the thickness of the metal that can be cut?
| Plate Material | Laser Power | Maximum Cutting Thickness (mm) |
| Carbon Steel | 6kW/12kW/20kW/30kW | 25/35/60/60 |
| Copper Plate | 6kW/12kW/20kW/30kW | 14/16/20/20 |
| Aluminum Plate | 6kW/12kW/20kW/30kW | 14/25/40/40 |
| Stainless Steel | 6kW/12kW/20kW/30kW | 16/25/50/50 |
Is the exchange table laser cutter easy to operate?
Yes. The exchange table laser cutting machines feature intelligent CNC control systems, automatic nesting software, autofocus cutting heads, and user-friendly interfaces, allowing operators to learn basic operation quickly.
What are the advantages of an exchange table laser cutter compared with a single table machine?
Key advantages include:
- Higher production efficiency
- Faster material handling
- Reduced labor costs
- Improved operator safety
- Better suitability for batch production
- Continuous cutting operation with minimal downtime
How do choose the right exchange table laser cutting machine?
When selecting a machine, consider:
- Material type
- Maximum material thickness
- Daily production volume
- Required cutting accuracy
- Workshop space
- Budget
- Future expansion plans
Contact us to help you determine the most suitable laser power and stage size.
