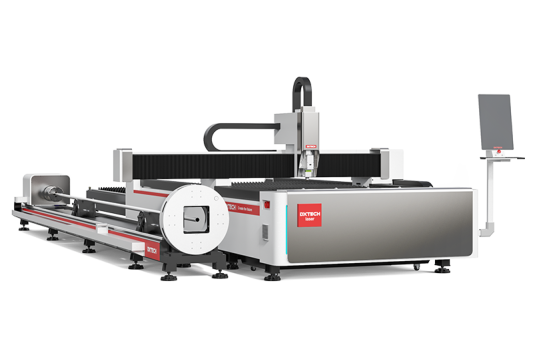

Laser Cutting Machine for Metal Sheet and Tube Features
Sheet & Tube Integrated Processing
-
Dual-function design enables efficient cutting of both metal sheets and structural tubes (round, square, rectangular) on one platform
-
Automatic material switching system allows continuous workflow, reducing changeover time by over 60%
-

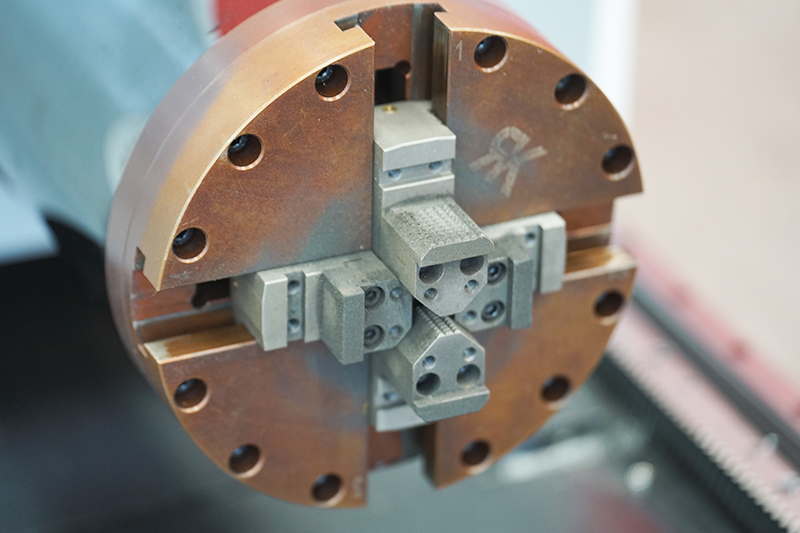

Adjustable clamping fixtures accommodate various tube diameters and sheet sizes, suitable for Venezuela’s diverse fabrication needs
Heavy-Duty Machine Bed Construction
-
Welded steel frame with stress-relief annealing provides exceptional stability under continuous operation
-
High-precision gear-rack transmission system ensures positioning accuracy within ±0.03mm
-

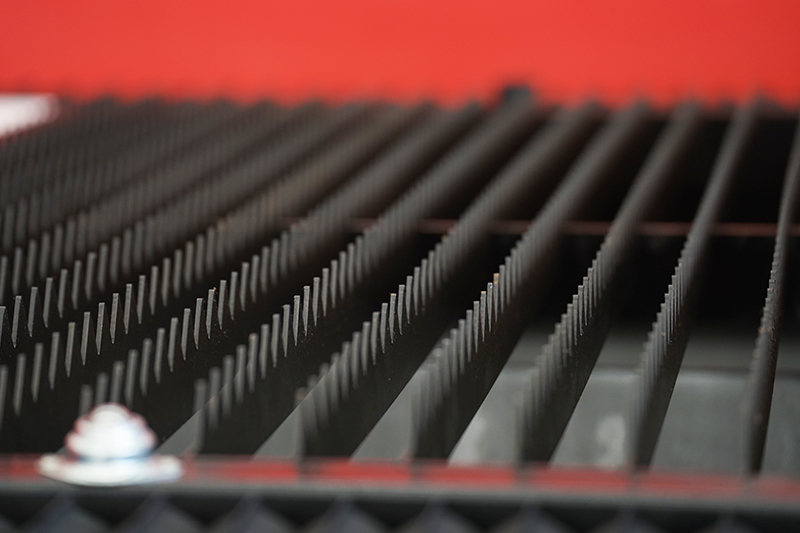

Reinforced load-bearing design supports up to 1500kg, maintaining stability during high-speed cutting

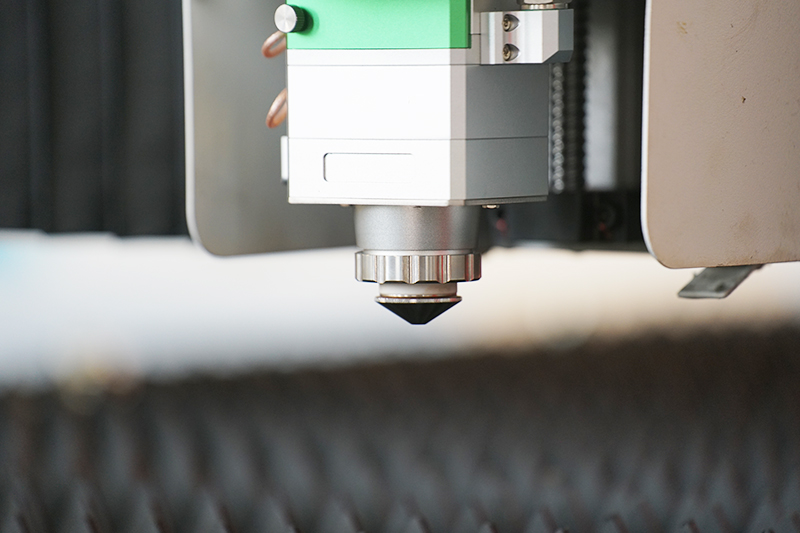

Advanced Laser Cutting Head
-
Auto-focus function automatically adjusts focal length based on material type and thickness
-
Capacitive height tracking maintains optimal cutting distance even on uneven surfaces
-
Quick-change nozzle design reduces maintenance time while ensuring consistent beam quality
Intelligent Control System
-

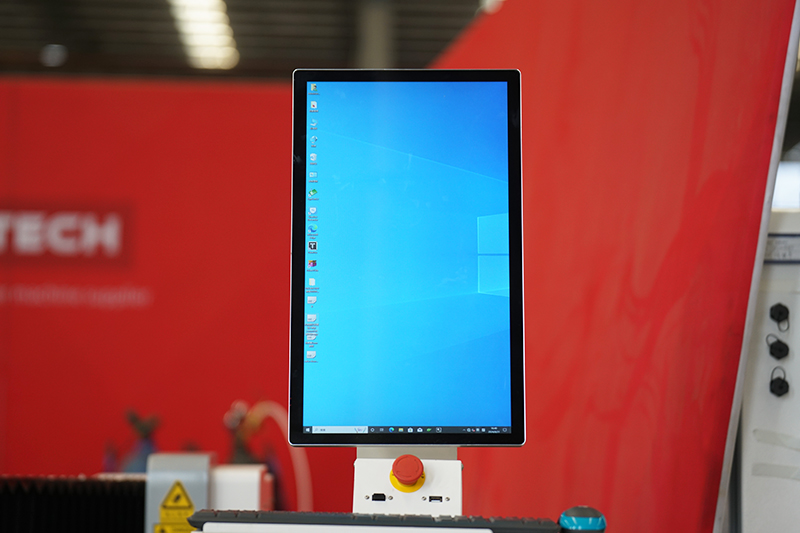

21.5-inch touchscreen interface with multilingual support simplifies operation
-
Preloaded cutting parameter database for common materials speeds up setup
-
Real-time monitoring and fault diagnosis system minimizes troubleshooting time, ideal for Venezuela’s technical environment
Laser Cutting Machine for Metal Sheet and Tube Specifications
| Model | 1530ELT | 1545ELT | 2040ELT |
| Working area | 1515*3030 | 1515*4545 | 2020*4050 |
| worktable bearing capacity | 800kg | 1100kg | 1300kg |
| Max. acceleration | 1.5G | ||
| Positioning Accuracy | ±0.03mm | ||
| Repositioning accuracy | ±0.02mm | ||
| Pipe section shape | Round/square/rectangular | ||
| Max. length of pipe | 3/6m | ||
| Laser power | 1-6kW | ||
| Laser | Multiple options | ||
| Max Running Speed | 140m/min | ||
Laser Cutting Machine for Metal Sheet and Tube Samples
DXTECH Services
We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.
Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
DXTECH Quality Assurance
2 Years free warranty
- This warranty only covers normal use of the laser machine
- This warranty does not cover any third party software or virus related issues not purchased from DXTECH
- We continue to provide lifetime free technical support to original customers. However, the warranty is not transferable.
Complete After-sales Service
- Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.
- We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
Customer feedback
▍ Our Laser Machine Factory
▐ Laser Machine FAQ
Of course. From laser configuration to automation systems, we provide tailor-made solutions to meet your specific needs.
It can cut various metals including stainless steel, carbon steel, aluminum, brass, copper, galvanized steel, and alloys.
2-year warranty for the main machine, 1-year for laser source and key components—covers manufacturing defects, excluding wear parts.
Standard models: 7-15 days; custom models: 30-45 days (varies by configuration and shipping location).
Laser source: annual check; lenses and nozzles: clean/replace every 200-300 hours; guide rails: lubricate monthly.
Laser Machine Upgrade
DXTECH is committed to providing one-stop processing solutions for your metal processing factory. We not only provide a complete production line of fiber laser cutting machine + CNC press brake + handheld laser welding machine, but also provide a series of auxiliary equipment, such as Hydraulic shearing machine, Channel letter bender, Metal roll forming machine and Laser rust remover, etc.
- One-stop processing
- More efficient production
Choosing DXTECH means you no longer have to worry about finding manufacturers of various machines and equipment. Our comprehensive services will ensure that your production process is efficient and smooth.
DXTECH focuses on providing customized equipment upgrade solutions for your metal processing plant. If your factory is still using traditional equipment such as plasma cutting machines, hydraulic shearing machines or water jet cutting machines that have low processing efficiency and unsatisfactory cutting quality, then DXTECH will be your ideal choice.
- More efficient
- More precise
- More energy-saving
We can help you upgrade these equipment to more efficient, more precise, and more energy-saving fiber laser cutting machines, thereby greatly improving processing efficiency and cutting quality, and bringing a qualitative leap to your factory.
