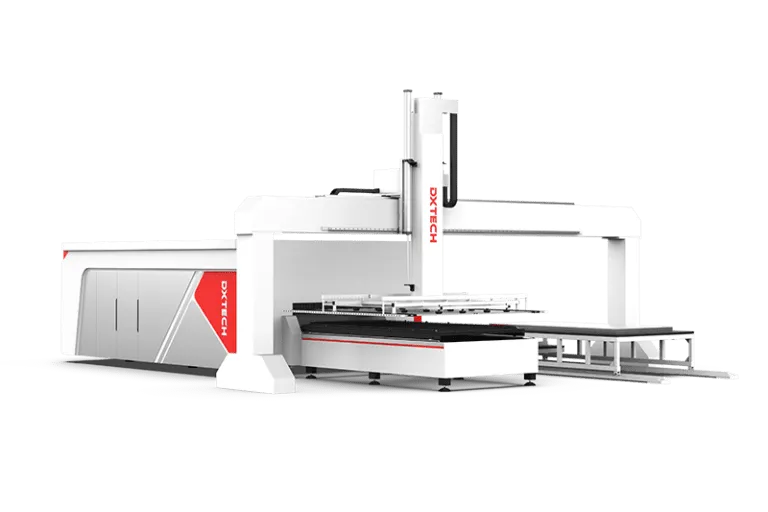

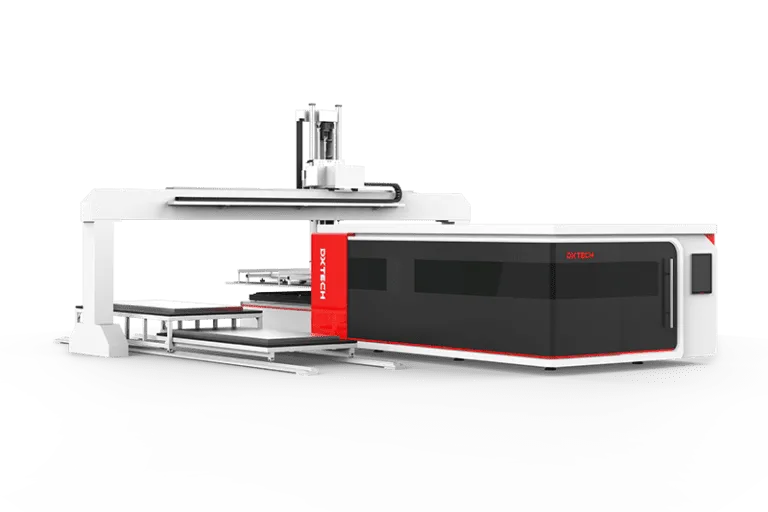

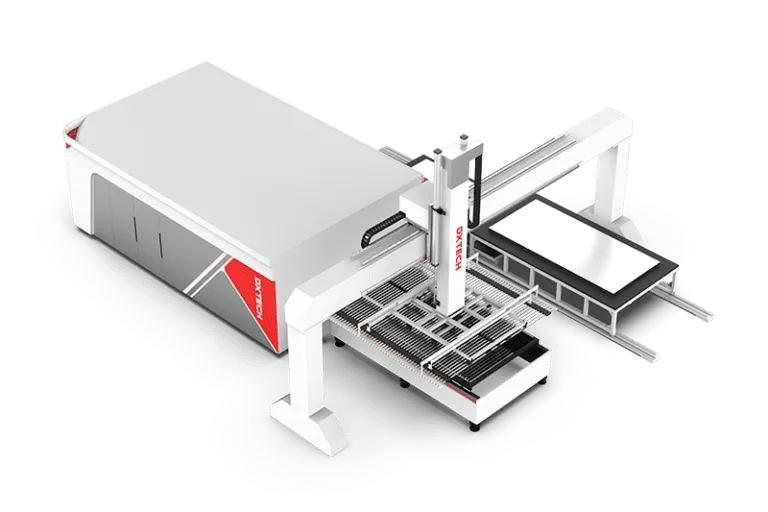

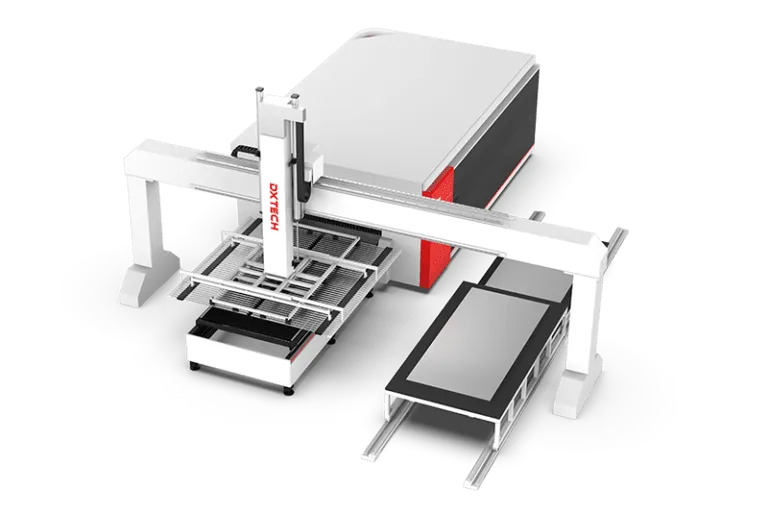

Automatic Loading and Unloading System

Automatic Loading and Unloading System Video

Automatic Loading and Unloading System Features

Automatic Loading and Unloading System Automatic laser cutting machine

Dual-Table Exchange System

The exchange table enables continuous material loading and enhances safety, significantly reducing downtime and enabling fully automated processing.

Automatic Loading and Unloading System

A complete loading and unloading cycle takes only 52 seconds, making it particularly suitable for high-volume production.

Multi-Size Panel Compatibility

A single 5×10-foot machine can process 4×4, 4×8, 4×10, and 5×10-foot panels, meeting diverse customer needs. Power output ranges from 3 kW to 12 kW, making it particularly suitable for cutting medium- and thin-gauge sheets

Heavy-Duty Support and Safety Light Curtain

Reinforced worktable supports ensure stable handling of heavy panels during loading and unloading. The rear worktable is equipped with a safety light curtain, allowing for convenient loading and unloading even when operating within a fully enclosed enclosure.

Fully Enclosed Enclosure and Dual-Layer Dust Extraction

Automation laser cutting machine is equipped with a fully enclosed enclosure and a dual-layer dust extraction system, ensuring safe and clean operation that complies with strict EU standards for French workshops.

Inquire now

Automatic Loading and Unloading System Specificaiton

Model	DX-1530SA Automatic Loading and Unloading System
Working Area	1500*3000mm（optional）
Laser Output Power	1-20KW（ optional ）
X/Y-axis positioning accuracy	±0.03mm
X/Y-axis repositioning accuracy	±0.02mm
Max Speed	120m/min
Maximum acceleration	1.5G
Servo motor	Japan Yaskawa / Japan Fuji
Electrical components	Schneider
Reducer	Japan SHIMPO
All machines can be customized according to customer needs

Automatic Loading and Unloading System Applications

DXTECH Services

We warmly welcome domestic and overseas customers to visit our factories and offices and talk about business in person. We now have one workshop with an area of 45,000㎡ in Jinan and one factory with an area of 30,000㎡ under construction in Taian, Shandong Province.

Your salesperson and factory technicians will together take care of all your after-sales issues from the moment you received the laser machine.

We provide free online training and techinical support. Besides, we can also go to your place to settle down the installation, debugging, training, and using matters.
